Product Overview

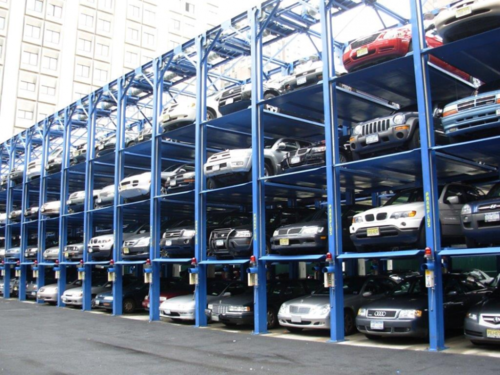

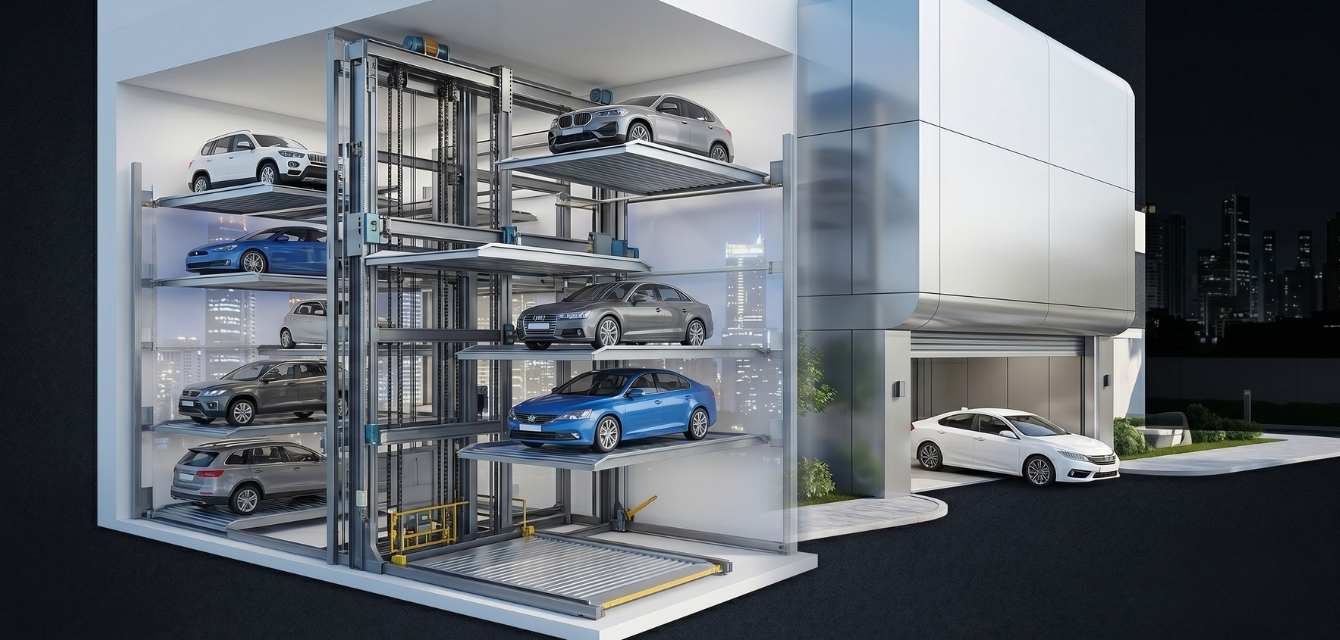

Our 2-7 Level Puzzle Parking System is a highly efficient, semi-automated space-saving solution designed to multi-fold your layout optimization capacity. This system configuration utilizes a puzzle-like matrix grid where multi-level steel pallets slide horizontally and lift vertically. An empty slot layout configuration is cleverly maintained on lower levels, allowing any specific upper-tier vehicle position to independently drop down to ground level instantly, ensuring true user accessibility.
- Independent entry & retrieval process
- High-speed hydraulic or motor drive
- Galvanized steel plate platforms
- Integrated photoelectric curtain logic
- Overload limit safety triggers
- Highly customizable 2 to 7 level arrays
Engineering & Installation Challenge
Managing multi-axis automated shifting vectors requires dynamic calibration precision and rigid steel tracking rails. The primary engineering challenge lied in configuring synchronized lateral movement mechanisms over tight residential building structural basements. Shivam Elevator engineered custom integrated limiters and used dedicated high-tensile balancing cables alongside advanced PLC logic sequencing to eliminate structural binding even during continuous heavy-duty vehicle retrieval periods.
Testing & Operational Result
Every customized 2-7 Level Puzzle Parking layout configuration goes through rigorous electrical multi-axis diagnostic tracking phases and 125% overload proof testing directly at our processing factory blocks. The integration of perimeter structural safety nets, smart interactive touchscreen panels, and immediate emergency isolation stop switches results in an incredibly safe, reliable parking engine. Shifting processes perform quietly and flawlessly across multi-tier architectural parameters.
