Product Overview

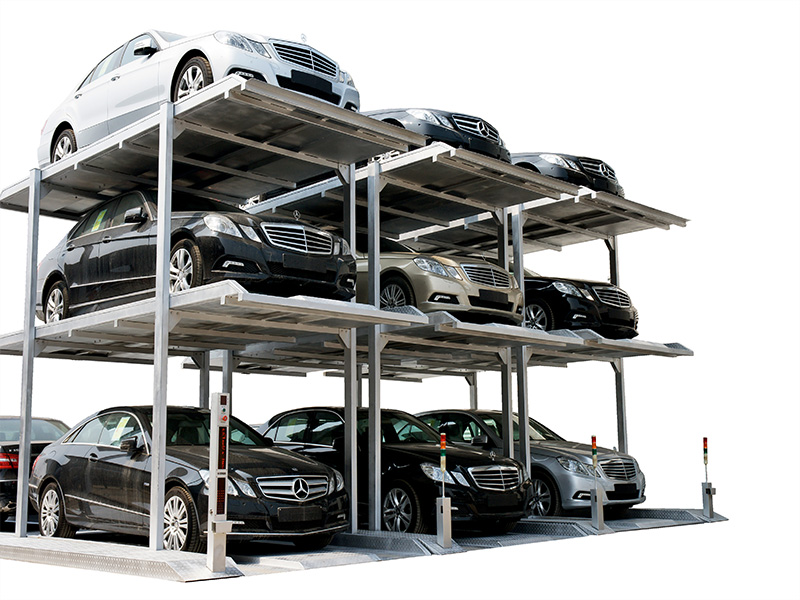

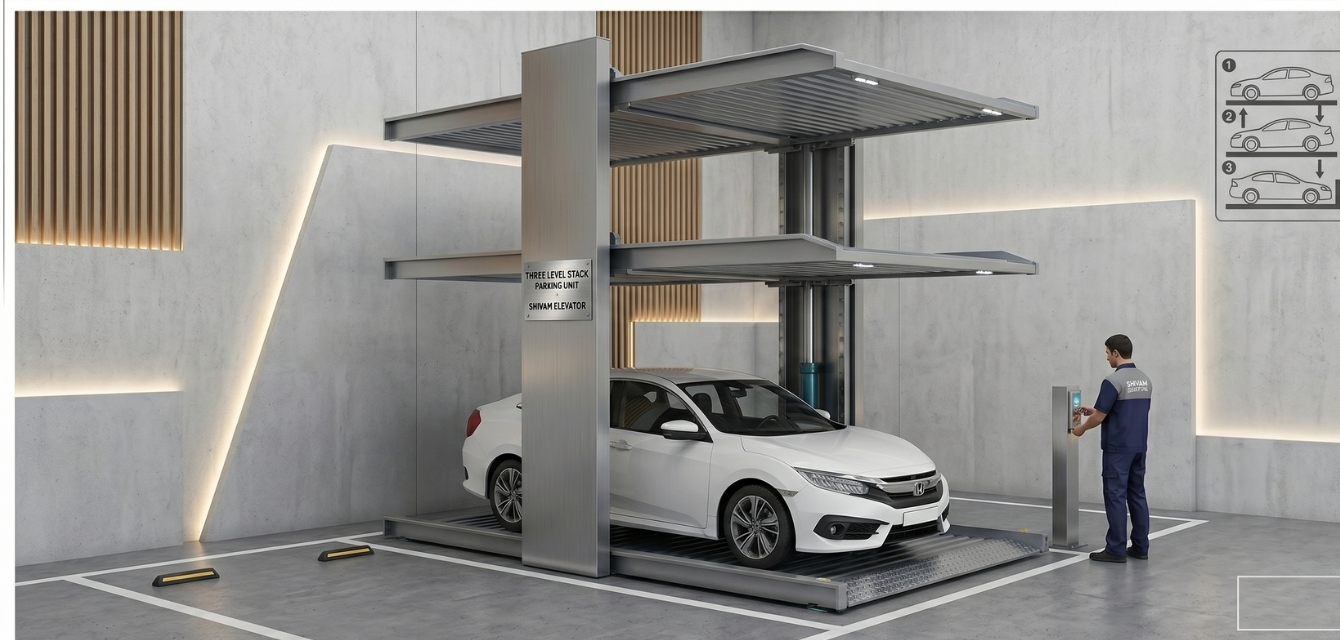

Our Three Level Stack Parking System is an advanced space-saving solution engineered to triple the parking capacity of a single traditional slot. Operating with two independent suspended platforms driven by heavy-duty hydraulics or lifting chains, this system maximizes vertical headroom to store up to three vehicles safely stacked. Highly recommended for commercial office complexes, transit hubs, and residential compounds facing tight footprint constraints.
- Multi-stage synchronized cylinders
- Galvanized wave platforms
- Emergency manual valve option
- Photoelectric safety sensors
- Low operation & maintenance cost
- Multiple structural configurations
Engineering & Installation Challenge
Triple stacking requires exceptional vertical structural strength and flawless balancing controls to counter asymmetric platform loading. The challenge lied in optimizing the overall structure height to align with clear structural ceiling limits while maintaining safe under-car clearances for SUVs on the lower decks. Shivam Elevator handled this by employing custom profile-bent reinforced columns and an intelligent dual PLC loop to maintain absolute alignment during rapid structural shifting.
Testing & Operational Result
Every Three Level mechanical unit undergoes structural testing under strict 125% structural static overload margins at our manufacturing plant. The integration of continuous mechanical limit triggers, automatic photoelectric barriers, and full-stage emergency dynamic locks delivers a highly secure space management tool. The operational lift works seamlessly with silent control, providing ultimate space configuration optimization.
